Saf-T-Anchor
Catalog Numbers & Pull-Out Chart
The Saf-T-Anchor Catalog number is relative to the length of the anchor, the sizes of the flites and the size of the rod.
For example, the STAD55432N-3/4" anchor is 5' in length, has flites of 5", 4", 3" and 2" and the rod is 3/4" in diameter.
Saf-T-Anchor Catalog Numbers and Pull-Out Chart

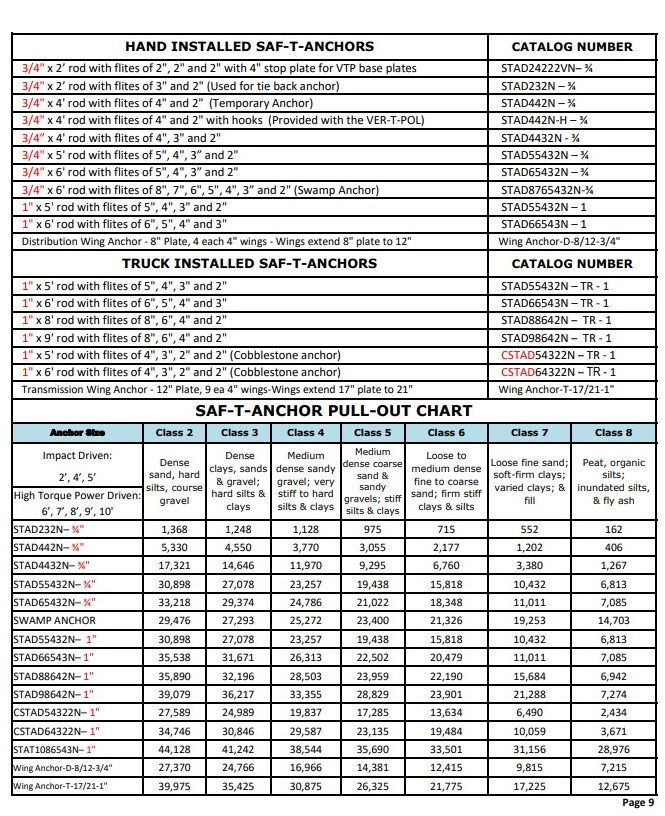

Click on the picture above to view the chart
Saf-T-Anchor
Comparison Chart
Refer to the chart below to select the appropriate ODT anchor as a substitute for the customer's anchor.
Above all, the choice of the correct anchor is dictated by the soil conditions. If the installed anchor fails to deliver the necessary holding strength, either drive the anchor further using the Anchor Rod Extension or opt for the Swamp Anchor to achieve the required holding force.

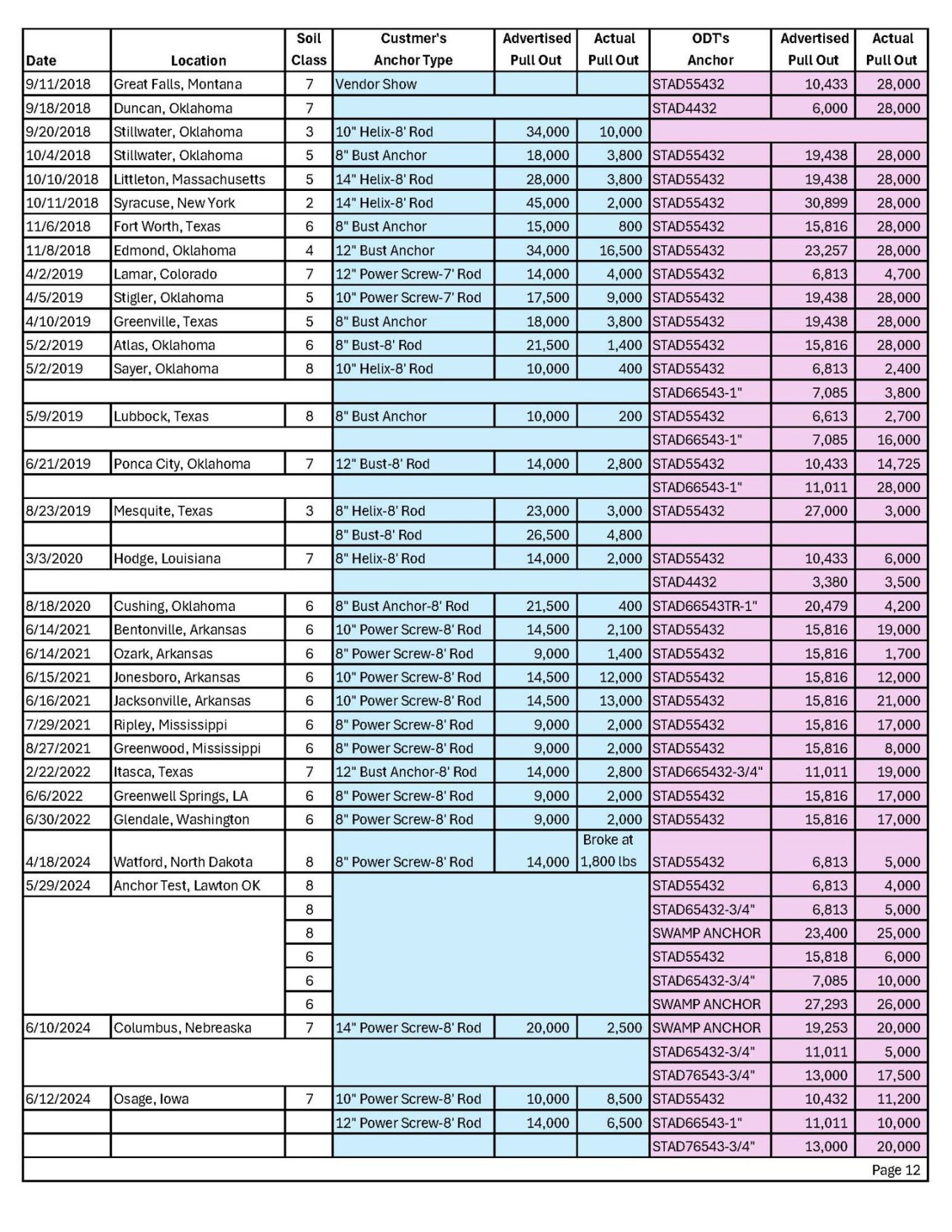

Saf-T-Anchor Comparison Chart

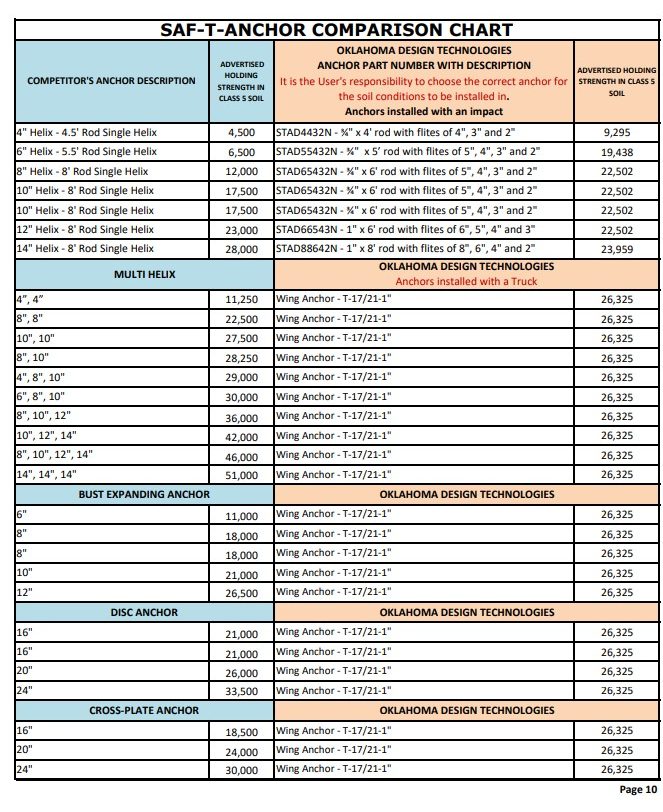

Click on the picture above to view the chart
Saf-T-Anchor

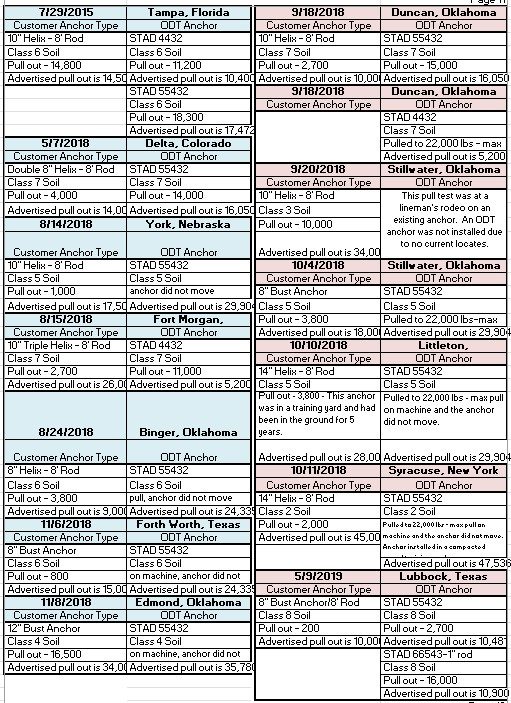

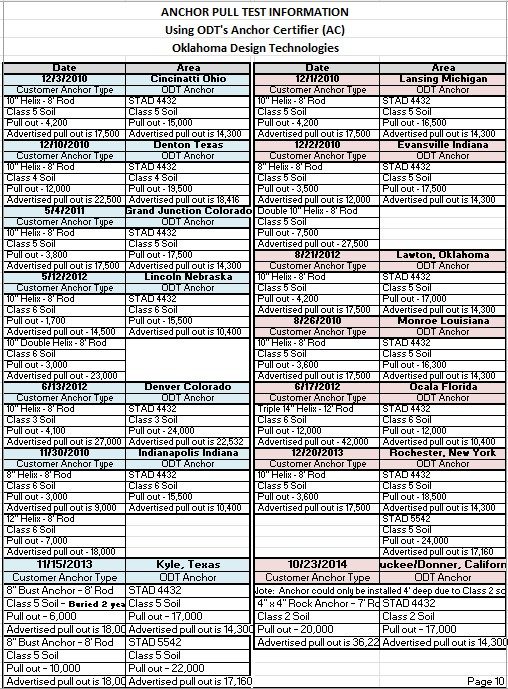

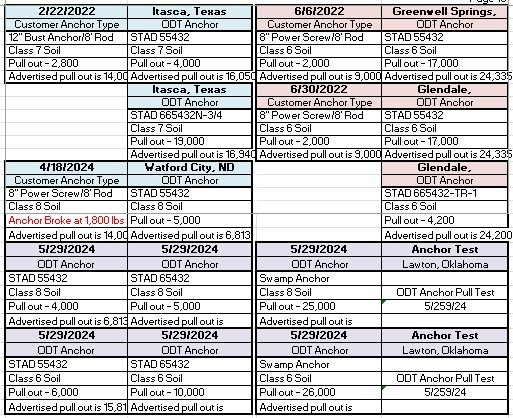

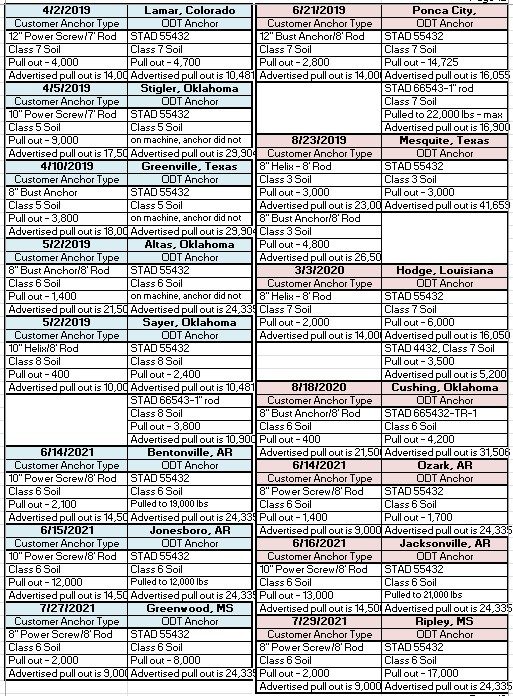

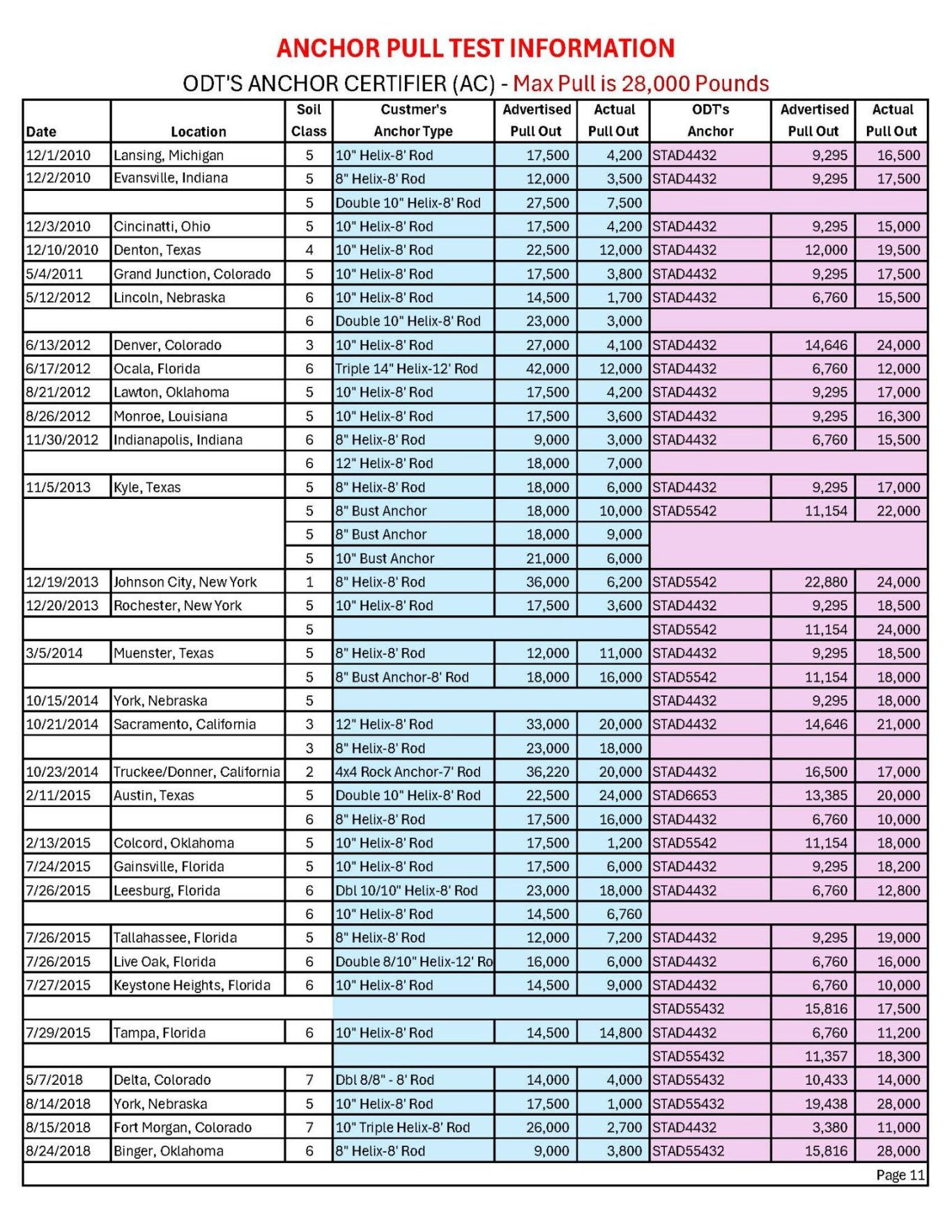

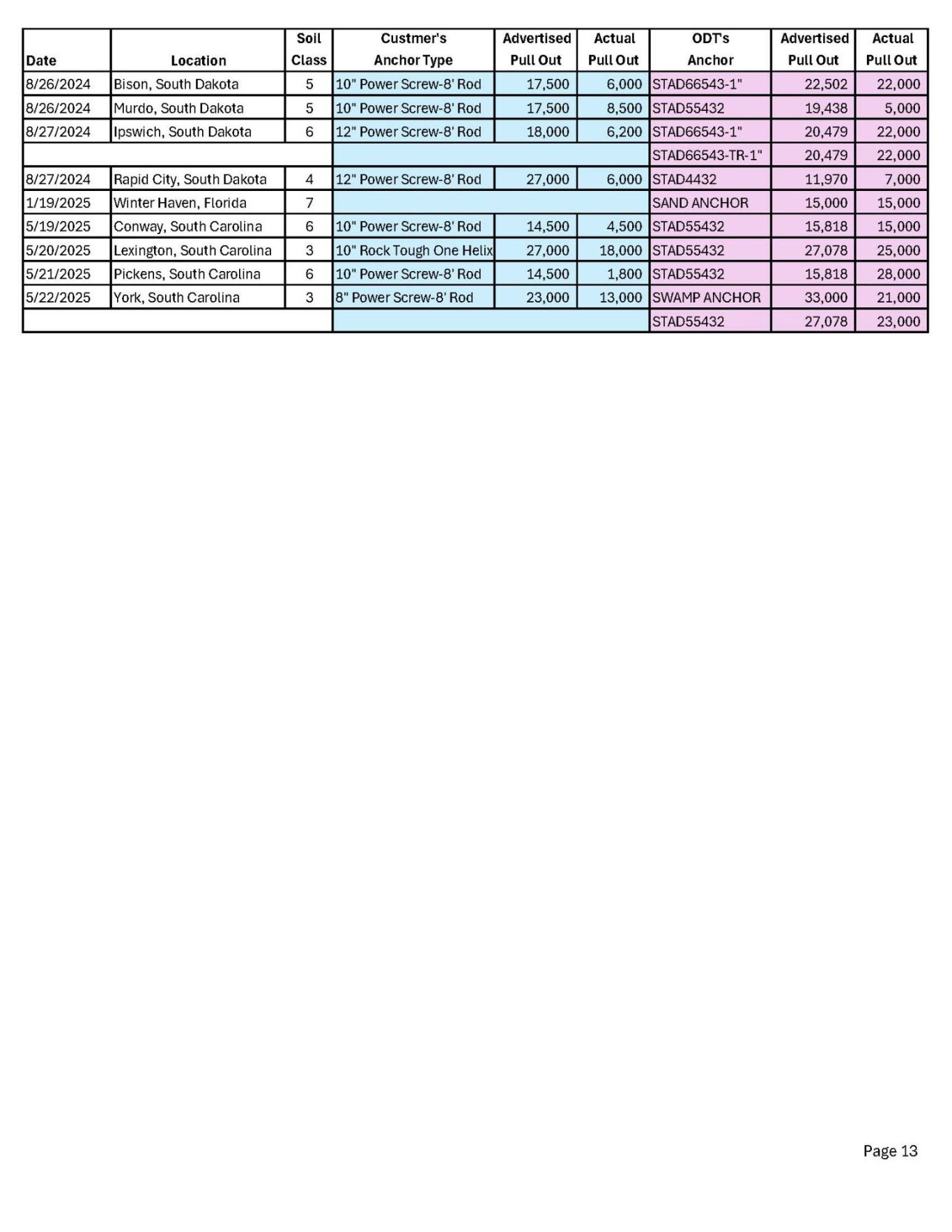

Anchor Pull Test Information
ODT will conduct a pull test at your location. The customer's anchor and ODT's anchor will be installed side by side, and the Anchor Certifier (AC) will be utilized to pull both anchors. This will determine the pull-out values and the soil classification.
